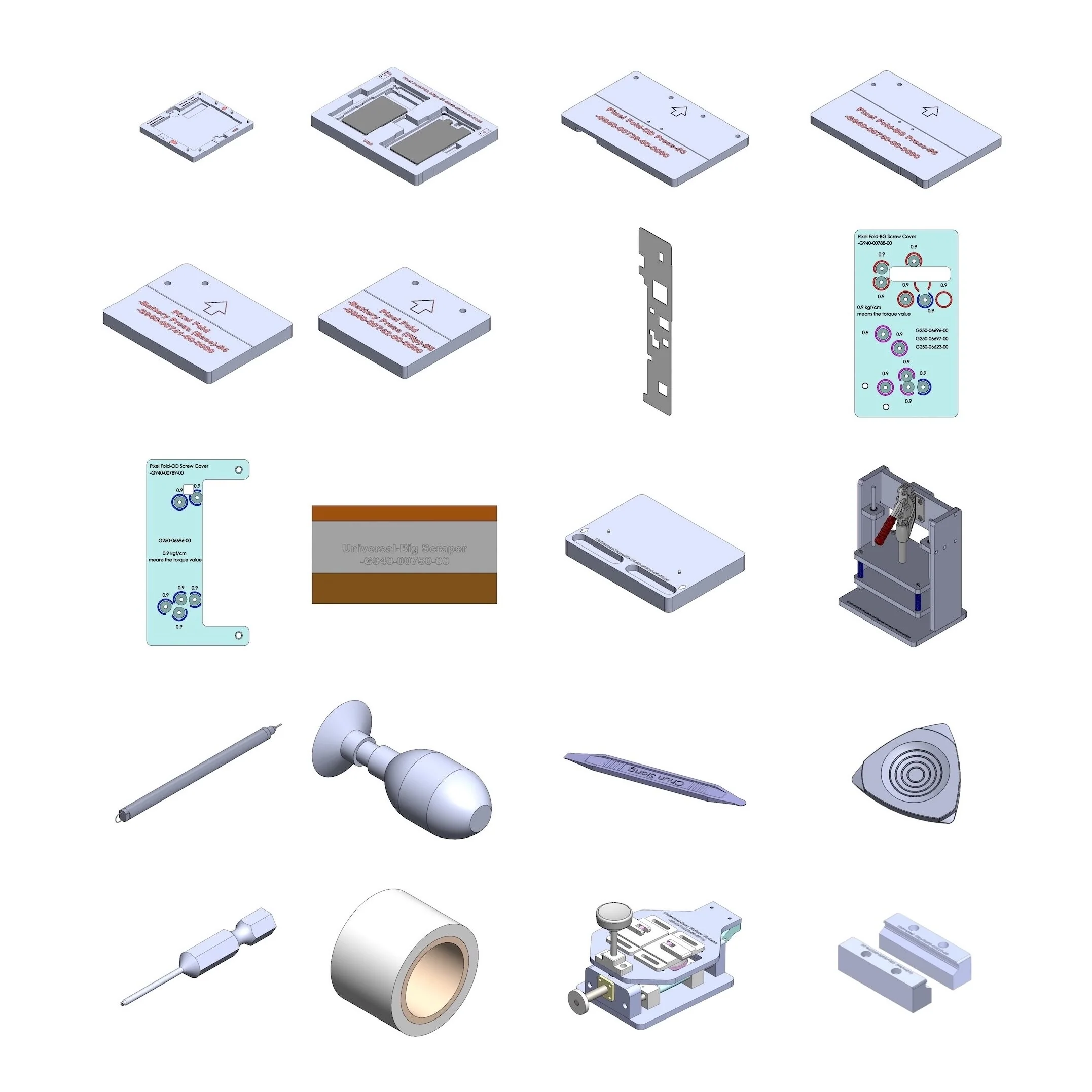

All the professional repair tools you need for the Pixel Fold:

• G940-00737-00 - F10 Main Holder & ID PF Align: This fixture is not only used to hold the device in place during repair but also to align and achieve desired height for pressing with the coordination fixtures
• G940-00738-00 - F10 OD & BG PSA Align: for alignment of the Back Cover and Outer Screen adhesives
• G940-00739-00 - F10 OD Press: enhances bonding between outer screen and device
• G940-00788-00 - F10 Screw Cover - BG: aligns the cut out of the screw cover with the corresponding RCAM of the device
• G940-00789-00 - F10 Screw Cover - OD: aligns the screw cover with the top and bottom pins of the holder
• G940-00740-00 - F10 BG Press
• G940-00741-00 - F10 Battery Press (Base Side)
• G940-00742-00 - F10 Battery Press (Flip Side)
• G940-00749-00 - F10 Thermal Grease Alignment Fixture: for applying an even amount of thermal grease to the indicated area of the device
• G940-00750-00 - Universal Scraper: scrape and attach the protective film to Inner Display
• G940-00735-00 - Universal Base: achieves desired height while pressing with Universal Press fixture
• G940-00733-00 - Universal Press Fixture: activates the adhesive when pressed with a specified amount of force
• G940-00779-00 - Universal Fish Line Tool: disconnects the board to board cable connectors and ejects SIM card tray
• G940-00780-00 - Universal Absorption Bulb: pick up, hold, move and release the display or battery
• G940-00782-00 - Universal Disassembly ESD Stick: removes the corners of Screen or Back Cover from devices
• G940-00783-00 - Universal Disassembly Pick: removes the Screen or Back Cover from devices
• G940-00785-00 - Screwdriver Hex Shank Torx Plus Bit no.3
• G940-00786-00 - Universal Protective Film: provides total protection to Back Glass or Display during the repair process
• G940-00873-00 - Universal Disassembly Fixture: clamps the device in place for disassembly
• G940-00874-00 - Spare Universal Device Clip - Universal Dssy Fixture V3: clamps the device in position during disassembly

iFixit sells genuine Google parts.

iFixit is an official Google partner. Our Genuine Google parts are supplied by the official Google supply chain.

Compatibility
This part is compatible with Google Pixel Fold.
